Pollo 8 Channel Digital Video Recorder(DVR) | 2 MP 8CH | PLC-1208H1-PM | CCTV Recorder

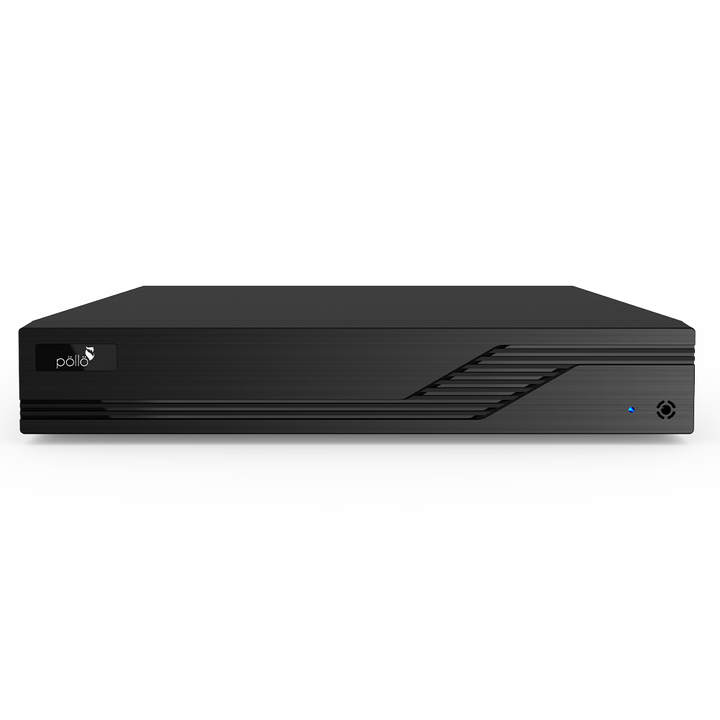

Pollo 8 Channel DVR – PLC-1208H1-PM

• 08 channel Input
• 2MP FHD Supported XVR
• TVI/AHD/CVI/IP
• 2 Channel IP 5MP/4MP/3MP/2MP
• 264/H.265
• 1 Channel Audio Input/Output
• IP Cameras Supported
• 1 SATA Interface Up-to 8TB
• Outgoing Bandwidth 60 Mbps
• Easy Remote Viewing on iPhone, iPad, and Android devices



  Model No.	PLC-1208H1PM
  System	Embedded Linux
  Analog Video Input	BNC × 8, BNC interface (1.0Vp-p; 75Ω), TVI/ AHD/CVI: 1080P/ 1080P Lite/ 720P/ 720P Lite/WD1
  IP Video Input	2CH, up to 5MP@25fps
  Total Input	10CH
  Video Output	HDMI × 1 :1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768
  Video Compression	H.264/H.265
  Multi-screen Display	1/4/6/8/9/13/16
  Audio Input	RCA ×1
  Audio Output	RCA × 1 (linear, 600Ω)
  Two-way audio	Take up channel one audio input
  Audio Compression	G.711(U/A)
  Recording Resolution	1080P Lite/ 720P/ 720P Lite/WD1
  Recording Frame Rate	Analog Channel: 4CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) 8CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) (only CH 1 supports) 1080P Lite/720P/WD1: 12fps (PAL)/15fps (NTSC) (other channels support) 720P Lite: 25fps (PAL) / 30fps (NTSC) IP Channel: 25fps (PAL) / 30fps (NTSC)
  Recording Bit Rate	32Kbps ~ 4Mbps
  Playback	8CH
  Playback Search	Time slice / time / event / tag search
  Play back Smart Search	Highlight colours to display the camera record in a certain period of time, different colours refer to different record events
  Play back Function	Play, pause, FF, FB, digital zoom, etc
  Alarm Mode	Manual, motion, exception, smart event
  Alarm Input	No
  Alarm Output	No
  Network Interface	RJ 45 100Mbps × 1
  Network Protocol	TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
  Incoming Bandwidth	16Mbps
  Outgoing Bandwidth	60Mbps
  Client Connection	Max. 5 users’ access
  Mobile Device OS	iOS, Android
  Storage HDD	SATA× 1, up to 8TB
  Local Backup	U disk, USB mobile HDD
  Network Backup	Yes
  RS 485	No
  USB	USB 2.0 × 2
  Remote Controller	No
  Power Supply	DC12V / 1.5A
  Consumption	≤ 5W (without HDD)
  Dimensions(mm)	255 × 222 × 42 (W × D × H)
  Working Environment	-10~50°C, 10%~90% (humidity)
  Certificate	CE, FCC
  Environment Protection	Directive EU RoHS, WEEE, REACH
